The only Open Source mesh package!

The easiest way to blanket your home in a clean, strong wireless signal.

Built on stable 802.11r & 802.11s technology.

Open source so you can contribute, tweak to your liking, and control your data!

No Subscription! Shipping now!

Buy Now!

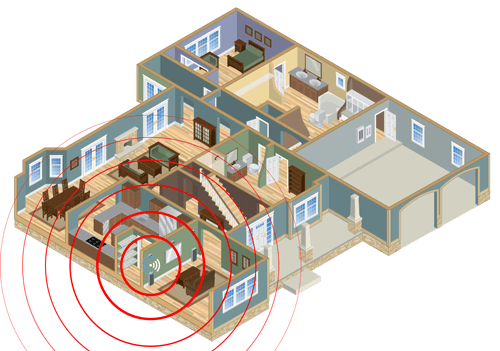

The single-router model just doesn't cut it

In many homes today single router wifi isn't good enough anymore. The signal simply can not penetrate walls and other obstacles in a home. The result? Sections of a home with weak or no wireless signal.

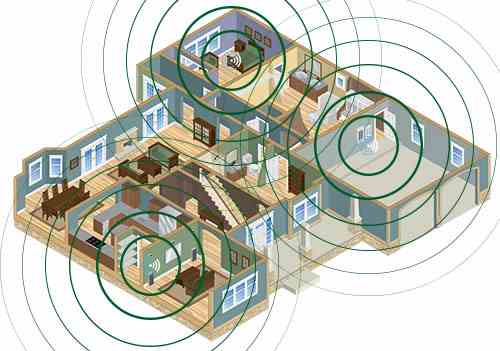

The new mesh model

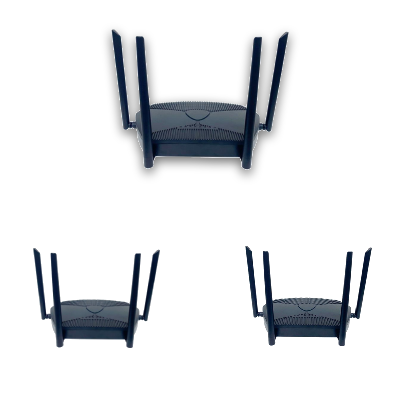

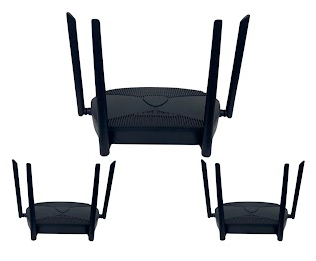

With FreeMesh Router and 2 FreeMesh Nodes most homes will experience a clean and strong wireless signal throughout. No more dead zones! No more complaints about weak wireless signal.

4G LTE Enabled

Setup a mesh system anywhere by connecting to a 4G LTE network. Ideal for users who do not have access to a traditional DSL or cable broadband connection. It can be connected in conjunction with a primary line as a failover system.

Product Descriptions

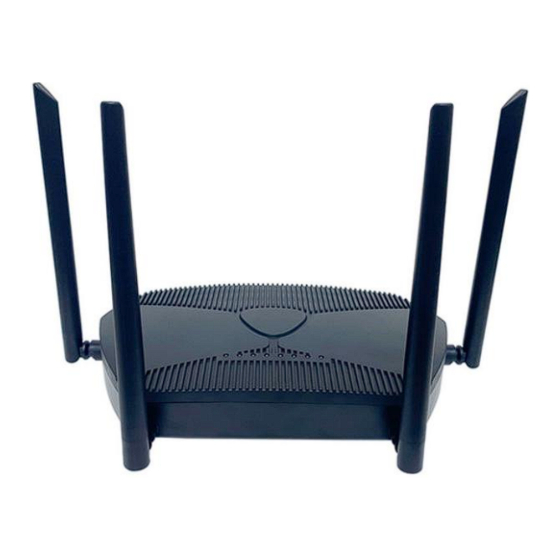

The WE1326 LTE FreeMesh Router is equipped with the MT7621A, the latest MediaTek processor. The MT7621A Wi-Fi SoC Dual-core CPU boasts a powerful clock frequency up to 880 MHz MIPS® 1004KEc™.

  • CPU Dual Core 880MHz MediaTek MT7621AT
  • ROM SPI 16MB
  • RAM DDR3 512MB
  • Antenna 2x 5dBi 2.4GHz, 2x 5dBi 5GHz, 2x 3dBi 3G/4G (built in)
  • Protocol 802.11a/b/g/n/ac dual band (2.4/5 GHz)
  • Interfaces 1x 10/100/1000Mbps WAN (Auto MDI/MDIX), 4x 10/100/1000Mbps LAN (Auto MDI/MDIX), 1x USB 2.0 ports, 1x Micro SD Card Slot, 1x SIM Card Slot
  • Button Reset
  • LED Power, 2.4GHz, 5GHz, WAN, LAN1, LAN2, LAN3, LAN4
  • Power DC 12V 2A
  • Size 11 x 9 x 3 inches
  • 4G LTE Enabled Quectel EC25 Mini PCIe, LTE category 4 module, 150Mbps downlink and 50Mbps uplink data rates

The firmware is built on OpenWRT and can be configured to support Quality of Service (QoS), SAMBA, Virtual Private Network (VPN) and others routing and tunneling applications. It is ideal for high performance 802.11ac, NAS (via USB), and smart routers. The dual-core MT7621A applies low-power consumption while producing high speed performance!

The router provides for five (5) Gigabit Auto MDI/MDIX Ethernet ports, a SIM card slot, a USB 2.0 port, and a Micro SD card slot for network storage (upon configuration). Internal 4G LTE antennas are also included (when SIM added and configured).

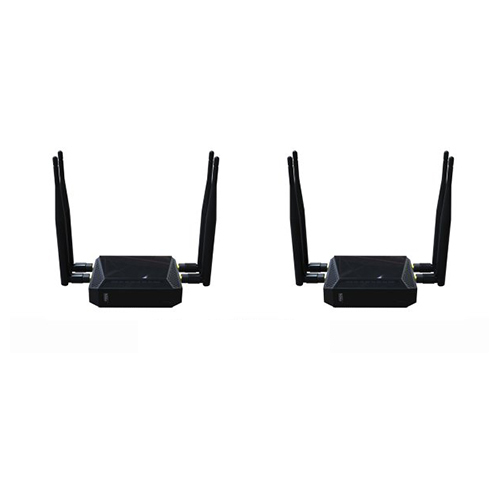

The WE3926 FreeMesh nodes provides blazing fast wireless in all corners of your home. The WE3926 combinds stability with performance to meet all of your wireless needs!

  • CPU Single Core 580MHz MediaTek MT7620A
  • ROM 16MB
  • RAM DDR2 128MB
  • Antenna 2x 5dBi 2.4GHz, 2x 5dBi 5GHz
  • Protocol 802.11a/b/g/n dual band (2.4/5 GHz)
  • Interface 1x 10/100Mbps WAN (Auto MDI/MDIX), 4x 10/100Mbps LAN (Auto MDI/MDIX)
  • Button Reset
  • LED Power, 2.4GHz, 5GHz, WAN, LAN1, LAN2, LAN3, LAN4
  • Power DC 12V 2A
  • Size 2 x 3 x 1 inches

Open Source - so you are in control!

Want to tweak and configure? Want to help contribute to improving wireless? Then always get updates that you can bring to the system yourself!

Click Here for more details

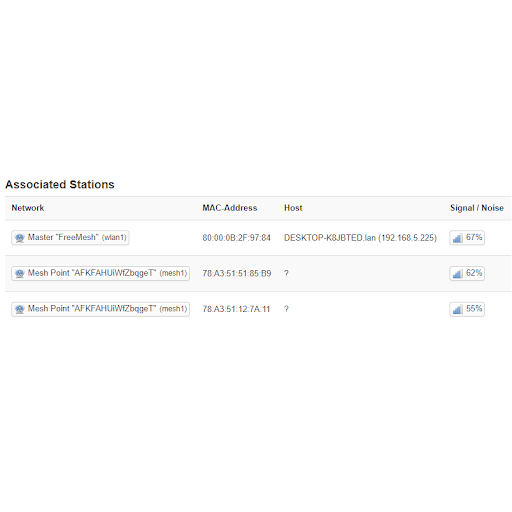

User Interface

Configure and manage your mesh nodes with an updated LuCi Wireless page that is specific to FreeMesh

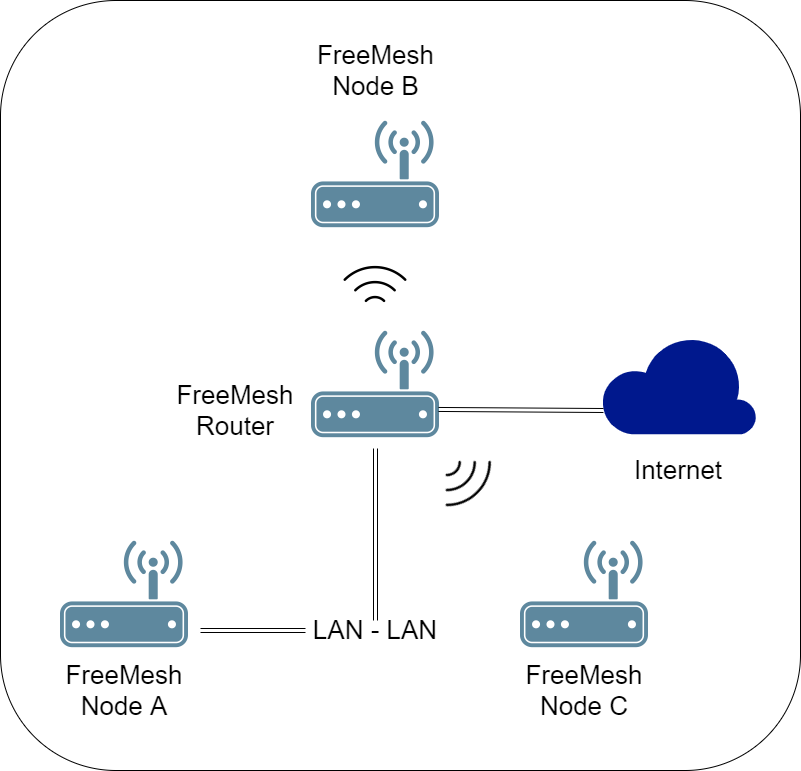

Wireless & Ethernet Backhaul

FreeMesh nodes automatically connect wirelessly to your FreeMesh router to create a wireless backhaul, or you can use an Ethernet cable to connect your nodes to create a wired backhaul. Ethernet backhaul also works with managed switches that have STP support.


Protect your entire Wi-Fi network by connecting to a VPN from your router or set up a VPN server and connect to your network from anywhere. With FreeMesh being open source you can configure it to meet your needs.

Get yours today!



  • 1 FreeMesh Router
  • 2 FreeMesh Nodes

  • 1 FreeMesh Router 3G/4G LTE
    (T-Mobile, AT&T, and Verizon*)
  • 2 FreeMesh Nodes

Have Questions?

We are only shipping in the US for now.
(please no international requests)

No subscription! (It is Open Source!)

Supports Ethernet backhaul as of v0.3
